MT Solution 20111227_191432

Click for a larger version
Click for a larger version

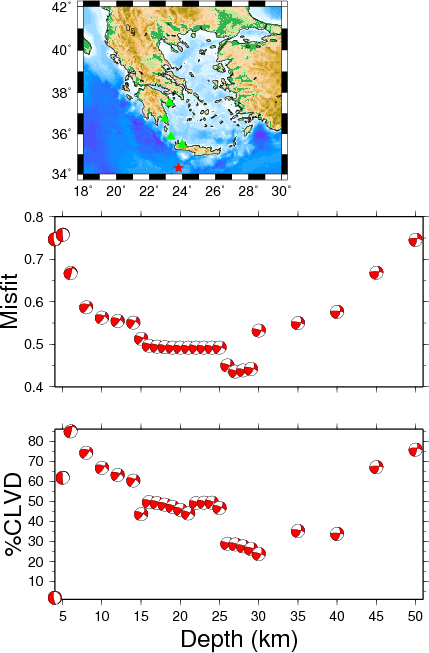

Inversion Results - Click for a larger version
Inversion Results

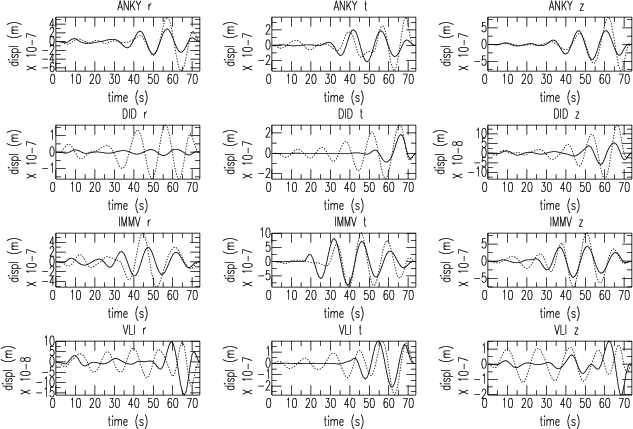

Fit Results - Click for a larger version
Fit Results

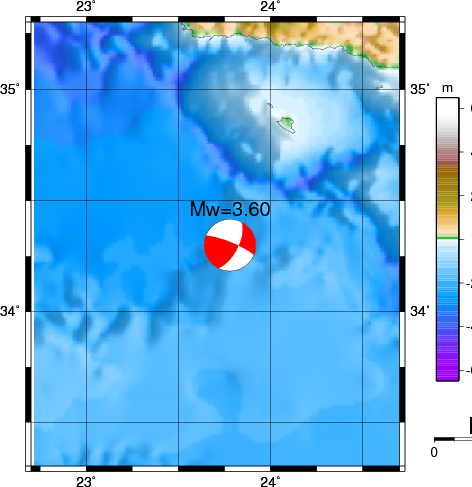

Origin Time:   27/12/2011   19:14:32   (GMT)
Latitude:  34.3053 N
Longitude:  23.7815 E
Focal Depth:  26 Km
Mw:  3.60
Mo:  0.288E+22 dyn*cm

From: NOA_IG - bbnet@gein.noa.gr - http://bbnet.gein.noa.gr

                       National Observatory of Athens
                          Institute of Geodynamics

             _________________________________________________

             =================================================
             == PRELIMINARY Regional Moment Tensor Solution ==
             =================================================

  Latitude: 34.3053 N  Longitude:  23.7815 E
  Time:  2011/12/27  19:14:32.35

  Depth   =        26
  Mw      =      3.60
  Mo      = 0.288E+22 dyn*cm

  Plane 1:
  Strike  =       292
  Dip     =        80
  Rake    =       154

  Plane 2:
  Strike  =        27
  Dip     =        64
  Rake    =        10

  Misfit  =      0.45
  CLVD%   =      28.8

  Quality :        B2

  Stations Used : ANKY VLI IMMV DID

 Computed by: A. Moshou

 *Waveform data from UPSL(HP) networks are greatfully acknowledged*


               -----------------
           ----------------------###
         ------------------------#####
       ---------------------------######
      ----------------------------########
     -----------------------------#########
   ------------------------------###########
   #######...--------------------###########
  ##############..--------------#############
  ####################.---------#############
  ########################..---###############
  ############################.###############
  ############################################
  ############################..--############
  ############################.------########
  #   #######################.----------#####
    T ######################.-------------##
      ####################..---------------
    #####################..----------------
      #################..----------------
       ###############..----------------
         ##########...----------------
           ######...-------   -----
               ------------ P --
